Since 2000Leading manufacturer of gas springs
Since 20001. The product has passed the safety test certification such as TUV LGA DIN4550, SGS BIFMA×5.1 and ISO9001.
2. It mainly plays the role of supporting and assisting, there is no pause in the stroke, and it can stay at the minimum and maximum positions of the stroke. Its advantages are beautiful appearance, convenient use, small occupied space and strong interchangeability.
1. The product has passed the safety test certification such as TUV LGA DIN4550, SGS BIFMA×5.1 and ISO9001.
2. It mainly plays the role of supporting and assisting, there is no pause in the stroke, and it can stay at the minimum and maximum positions of the stroke. Its advantages are beautiful appearance, convenient use, small occupied space and strong interchangeability.
3. This series of gas springs do not need external power when working, and the end of the stroke has a buffer function, which can effectively avoid damage to parts and prolong the life of the gas springs.

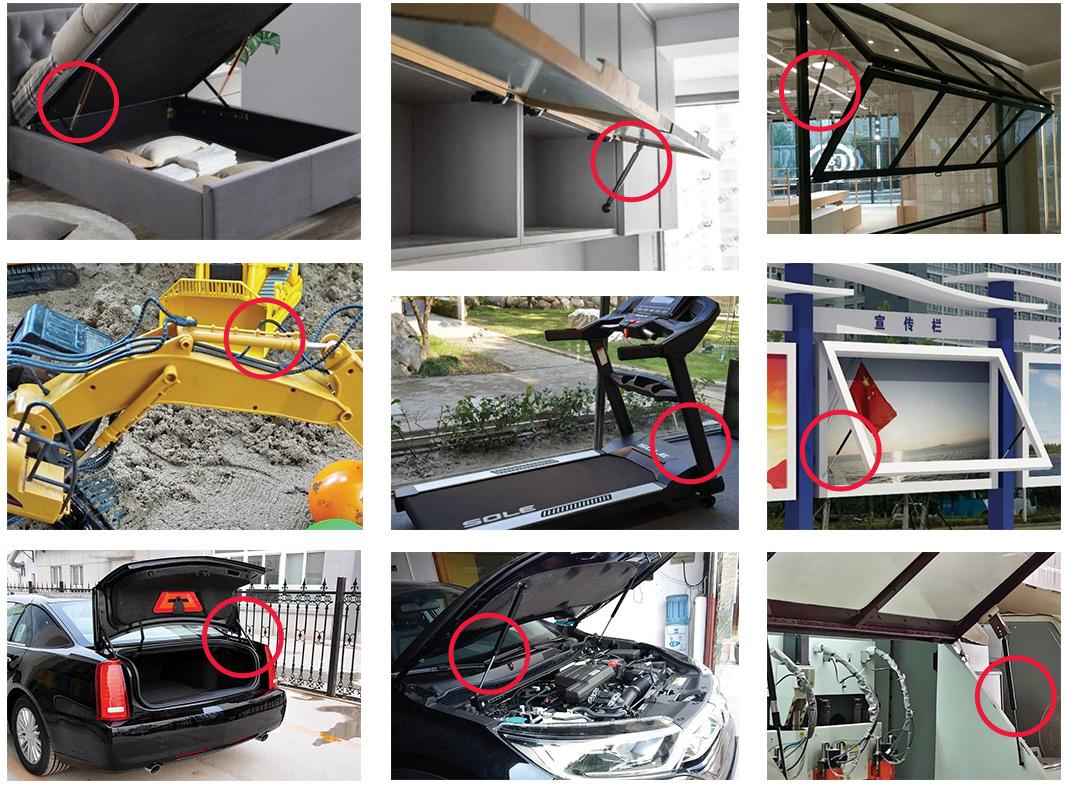

4. This series of pneumatic rods are widely used in cabinets, tool boxes, fitness equipment, car trunks, monitor stands, folding beds, etc.
5. This series of gas springs can be customized according to customer’s requirements.
|
Model No. |
HK6001/ 6002/ 6003/ 6004 /6005/ 6006 |
Specification |

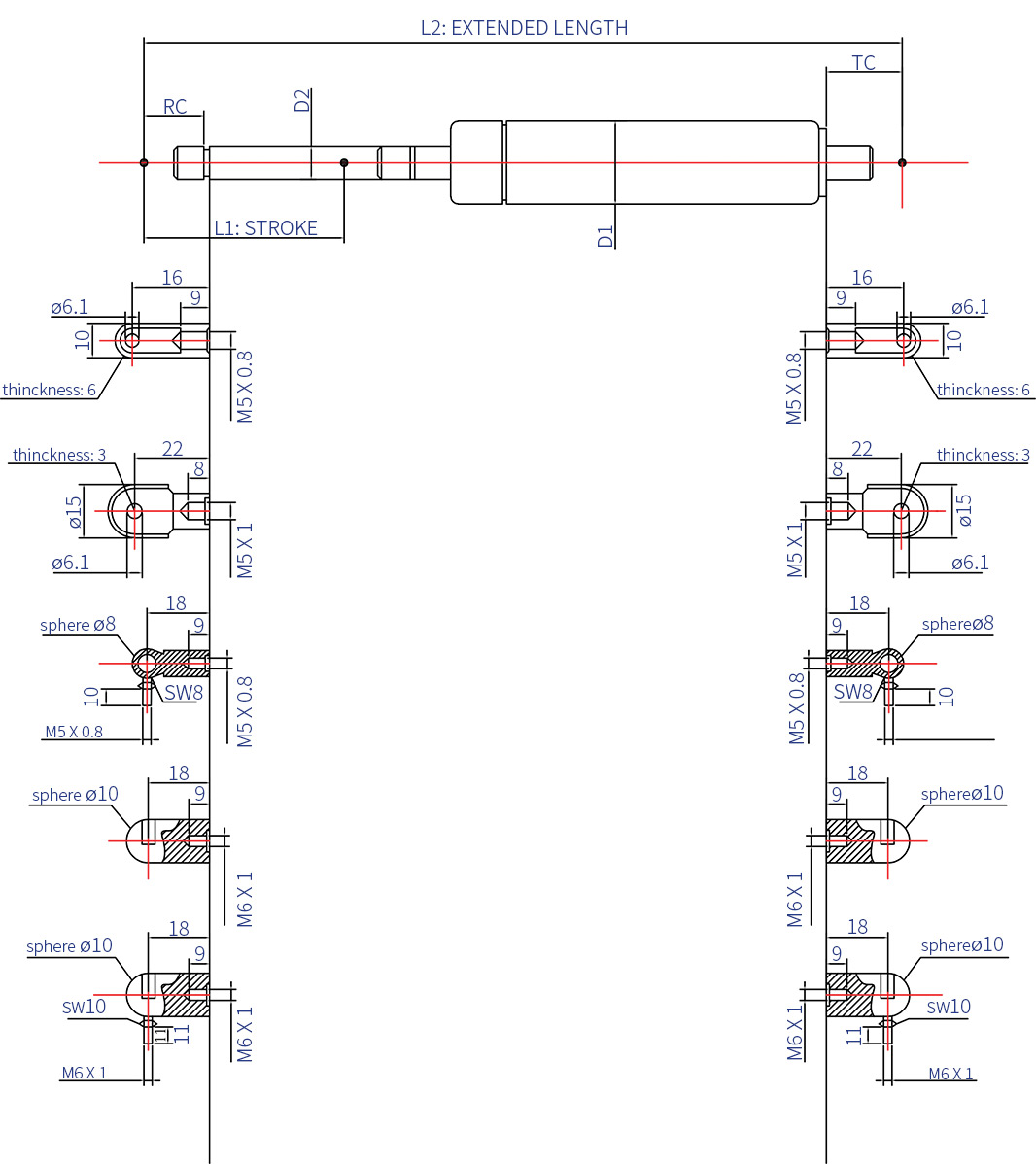

Check Drawings |
|
Warranty |
3-5 years |
Trademark |
Hengkang |
|
Piston Tube Surface Treatment |
Chrome/ Galvanized |
Certificate |
SGS/ TUV/ ISO |
|
Gas Type |
Nitrogen |
Origin |
Anhui Province |
|
Gas Type |
Nitrogen |
Capacity |
8,000,000 PCS/month |
|
Connector |

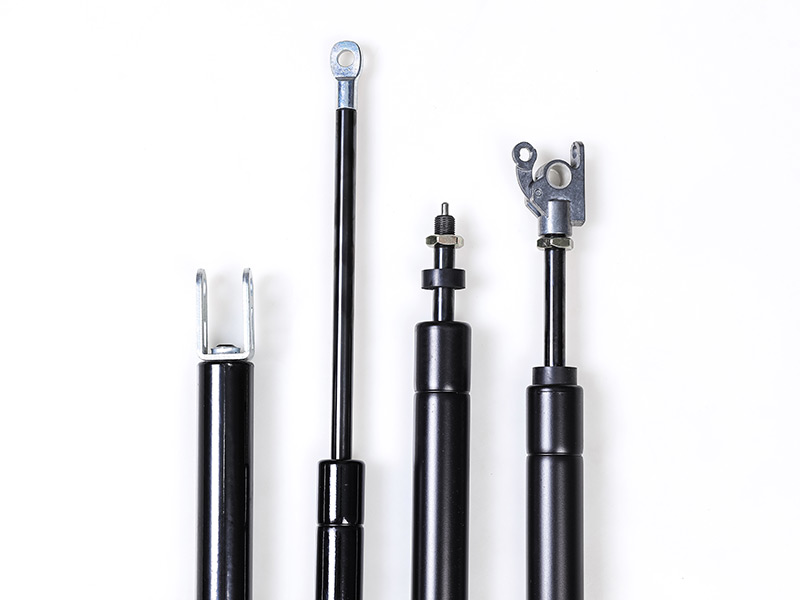

Ball Connector/ Metal Eye/ Clevis, etc. |
HS Code |
847899990 |
|
Raw Materials |
Finishing rolling seamless steel tube f-or cylinder, steel for piston rod |
Trade Terms |
FOB Shanghai or C&F price if you need |
|
Operating Temperature Range |
-15~+80ºC(5~176ºF)as standard; |
|
|
|
Model |
Pipe diameter（D1） |
Piston diameter（D2） |
Trip（L1） |
Pressure（F2/N） |
|
HK6001 |
15 |
5 |
50-155 |
40-300 |
|
HK6002 |
18 |
8 |
20-255 |
100-500 |
|
HK6003 |
22 |
10 |
50-155 |
100-700 |
|
HK6004 |
26 |
10 |
50-355 |
100-700 |
|
HK6005 |
28 |
10 |
50-455 |
100-900 |
|
HK6006 |
28 |
14 |
50-905 |
400-1200 |
Customizations are always welcomed.
1. Free samples: All samples are free, buyers bear the freight expense. Or you can arrange a global express to pick up samples from our factory. If you have your own size, you are welcome to send us samples, we can make samples and production accordingly.
2. Customized: Customized service is available, we will customize according to your drawings or samples.
3. Various payment and trade terms: If you need TT/ LC/ DP/ etc, FOB Shanghai or C&F price.
4. Delivery: Regular 15 days, peak season 21 days.
