Since 2000Leading manufacturer of gas springs
Since 20001. The product has passed the safety test certification such as TUV LGA DIN4550, SGS BIFMA×5.1 and ISO9001.
2. Lockable gas springs are also called gas dampersor angle adjusters. The gas spring can be stopped at any position in the stroke and has a large locking force after stopping.
1. The product has passed the safety test certification such as TUV LGA DIN4550, SGS BIFMA×5.1 and ISO9001.
2. Lockable gas springs are also called gas dampersor angle adjusters. The gas spring can be stopped at any position in the stroke and has a large locking force after stopping.
3. Different connecting elements and release systems complete our product series and provide you with lockable gas springs suitable for any application. This series of products have been widely used in medical equipment, automobile, furniture and other industries.
4. This series of springs can be customized according to customer requirements.
|
Model No. |
HK8001/ 8002/ 8003/ 8004 |
Specification |
Check Drawings |
|
Warranty |
5 years |
Trademark |
Hengkang |
|
Color |
Any |
Certificate |
SGS/ TUV/ ISO |
|
Inside |
Nitrogen and hydraulic oil |
Origin |
Anhui Province |
|
Material |
Mainly steel |
Capacity |
8,000,000 PCS/month |
|
Connector |
Stay wire/ hand clasping/ ball connector and other optional connector |
HS Code |
847899990 |
|
Salt Spray Test |
78 hours |
Trade Terms |
FOB Shanghai or C&F price if you need |
|

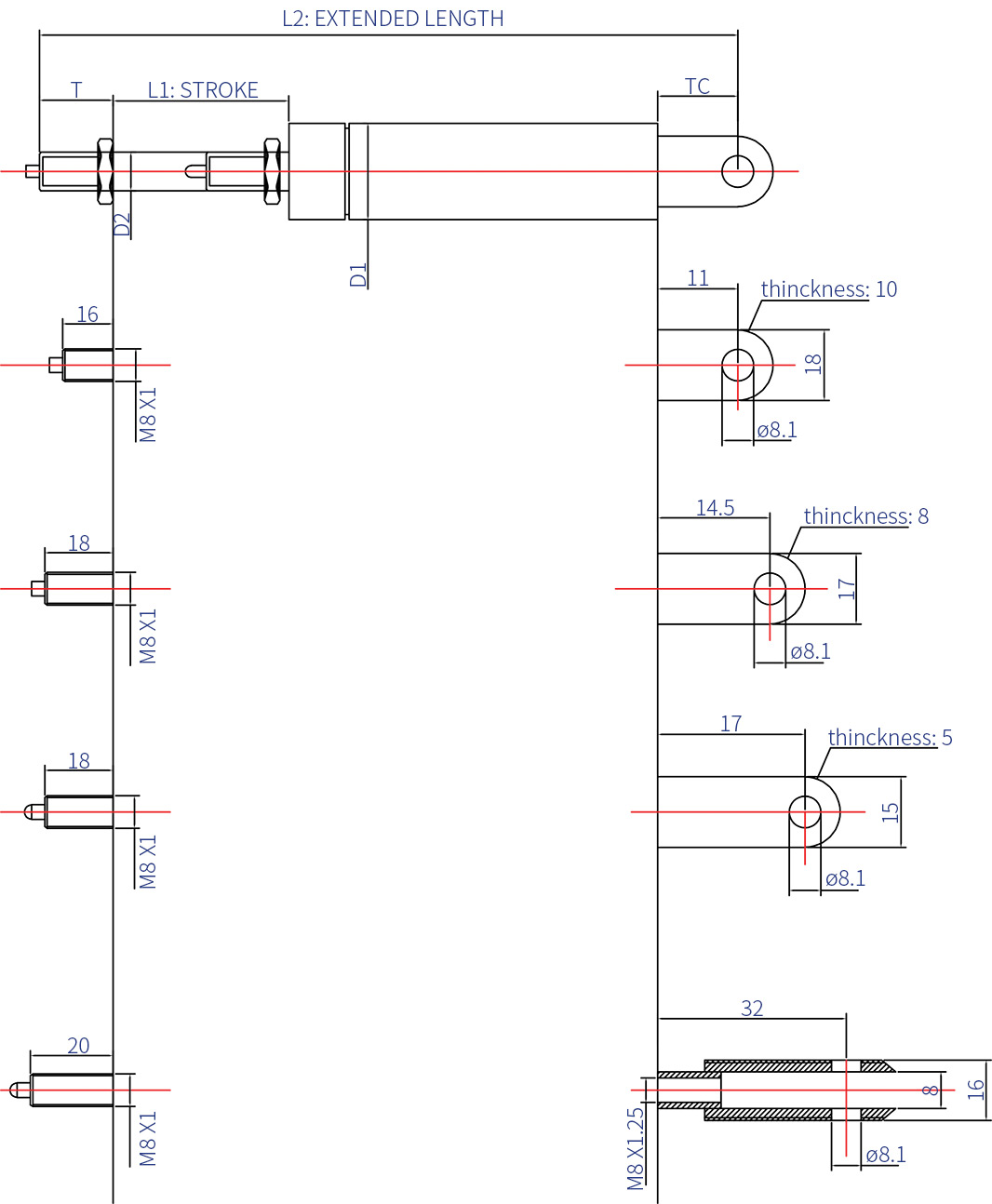

Model |
Pipe diameter（D1） |
Piston diameter（D2） |
Trip（L1） |
Pressure（F2/N） |
|
HK8001 |
22 |
10 |
20-255 |
200-700 |
|
HK8002 |
26 |
10 |
20-255 |
200-700 |
|
HK8003 |
27 |
10 |
50-155 |
200-1000 |
|
HK8004 |
28 |
10 |
50-355 |
200-1000 |
1. Free samples: All samples are free, buyers bear the freight expense. Or you can arrange a global express to pick up samples from our factory. If you have your own size, you are welcome to send us samples, we can make samples and production accordingly.
2. Customized: Customized service is available, we will customize according to your drawings or samples.
3. Various payment and trade terms: If you need TT/ LC/ DP/ etc, FOB Shanghai or C&F price.
4. Delivery: Regular 15 days, peak season 21 days.
